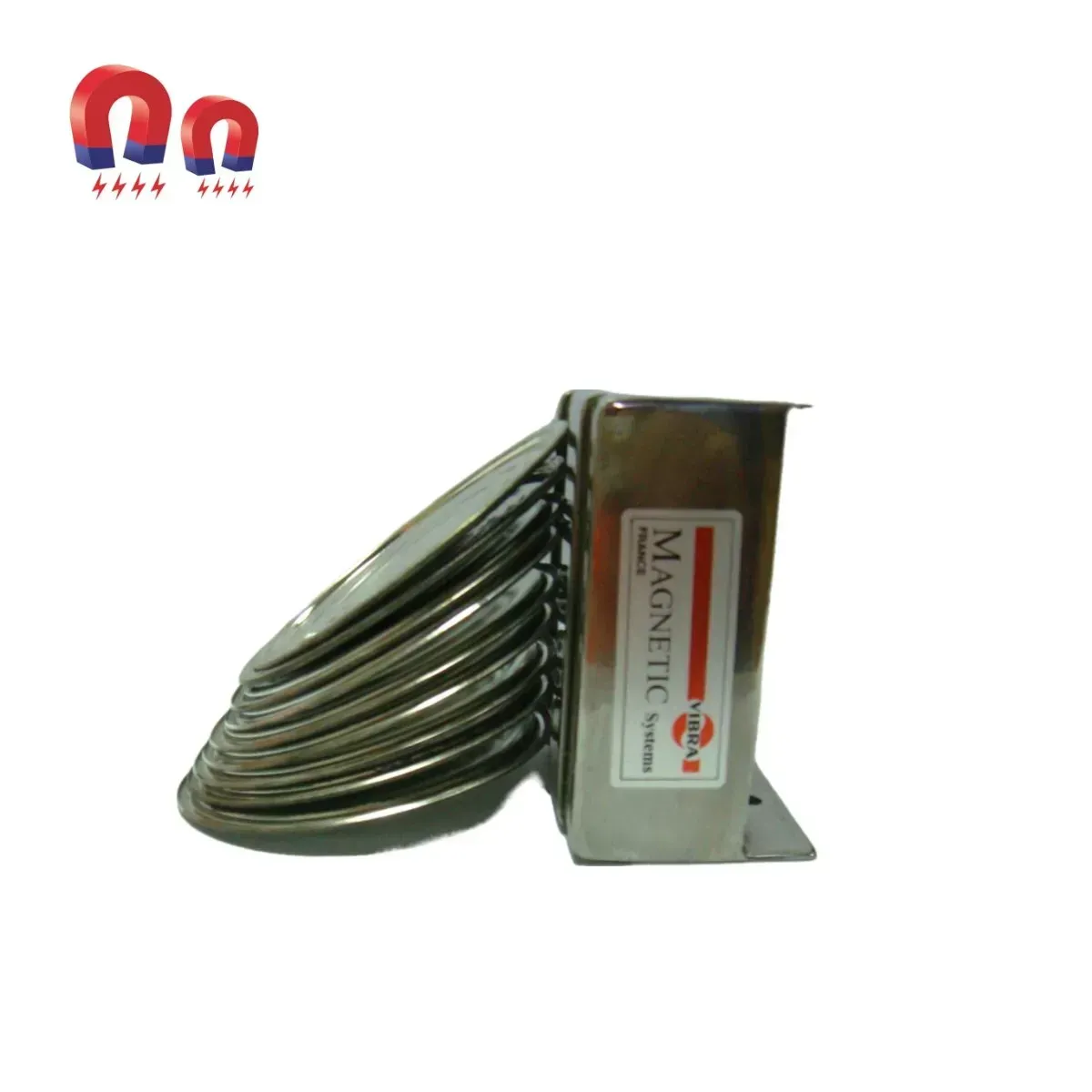

VIBRA® Magnetic Sheet Separators
Efficiently separate oily or sticky steel sheets to prevent double-blanking. These magnetic fanners automatically float the top sheet for safe, easy robotic or manual pickup.
- Prevents Double Blanking
- Automatic Sheet Fanning
- Speeds Up Production
- Protects Press Dies
Why Choose VIBRA® Magnetic Sheet Separators?
Designed to protect your equipment and ensure product purity in demanding industrial environments
Eliminate Double-Blanking Issues
Sticky or oily steel sheets often stick together, leading to “double-blanking” where two sheets enter a press simultaneously. This causes catastrophic damage to expensive dies and tooling. VIBRA® Sheet Separators create a repelling magnetic field that forces the sheets apart, ensuring only one is picked up at a time.
Increase Automation Efficiency
Perfect for robotic or automated feeding systems, these separators ensure a consistent, reliable gap between the top sheet and the stack. As soon as the top sheet is removed, the magnetic field instantly pushes the next sheet up into the floating position, keeping your production line running smoothly without jams.
Safer Manual Handling
For manual operations, prying apart oily steel sheets is difficult and dangerous, often leading to hand cuts. By automatically floating the top sheet, these fanners allow operators to grip the material easily and safely, reducing physical strain and minimizing the risk of severe lacerations from sharp edges.
Technical Specifications
Complete technical data for engineering and procurement teams
Housing Material
Stainless Steel (Face) / Mild Steel (Back)
Magnet Type
Ceramic (Standard) or Rare Earth (High Strength)
Mounting
Threaded holes (Back or Side)
Sheet Capacity
Depends on sheet thickness & stack height
Max Working Temp
80°C (Standard)
Function
Magnetic Repulsion / Fanning
Applications
Press feeding, Laser cutting, Robotic cells
FAQs About VIBRA® Magnetic Sheet Separators
What do sheet separators do?
They induce a like magnetic charge in stacked sheets, causing them to repel each other and separate automatically.
Will they work on oily sheets?
The magnetic force is strong enough to overcome the surface tension of oil, grease, or vacuum between sheets.
Can they separate aluminum sheets?
Aluminum and stainless steel (300 series) are non-magnetic and will not react to the magnetic fanning field.
How do I choose the right size?
Thicker sheets require stronger, larger magnets; contact us with your specific dimensions for a recommendation.
Where should I mount them?
Do they require electricity?
