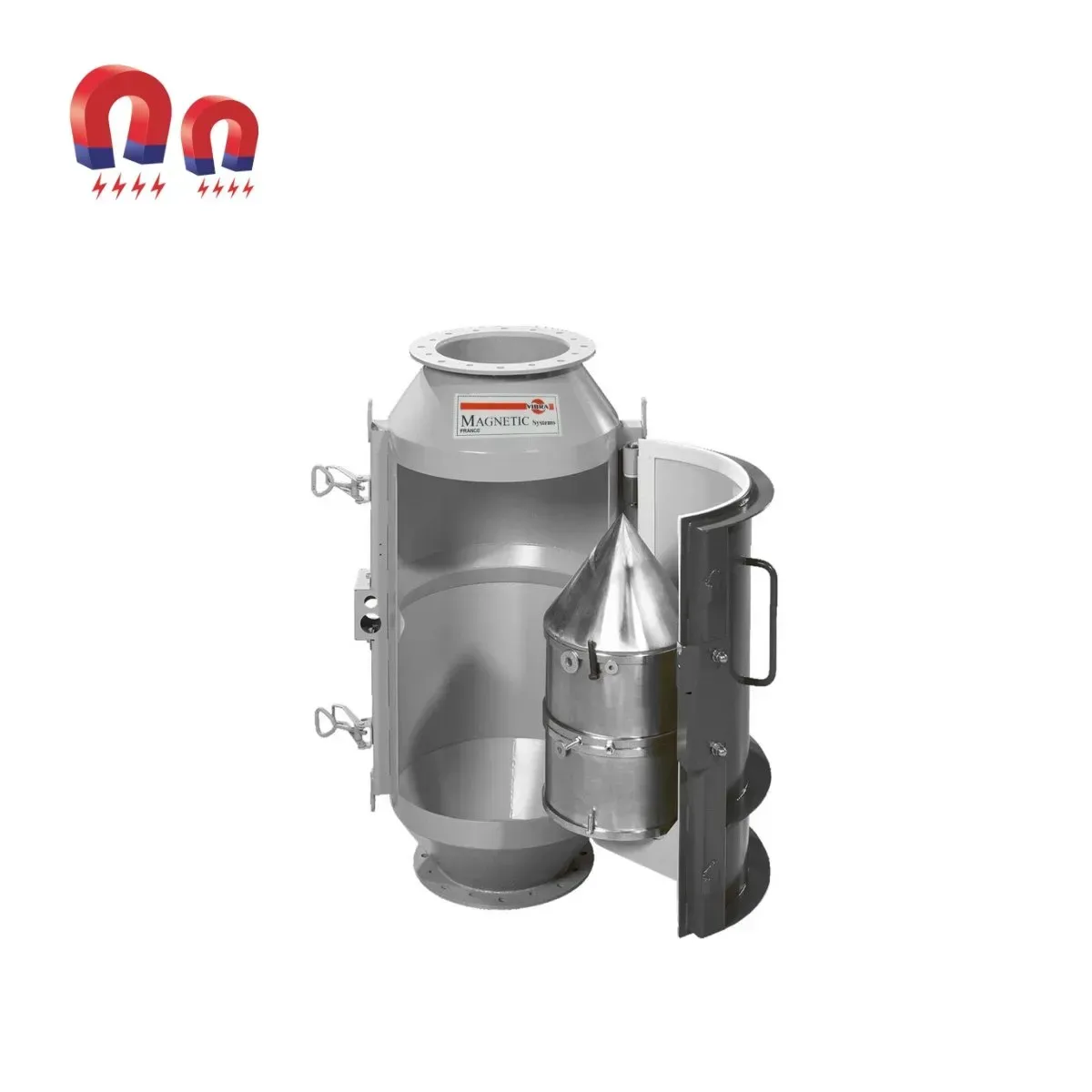

VIBRA® Pipe Magnets

Efficient inline magnetic separators featuring a powerful conical core. Designed to extract ferrous contaminants from vertical free-flowing granular lines without blockage.

Why Choose VIBRA® Pipe Magnets?

Designed to protect your equipment and ensure product purity in demanding industrial environments

Optimized for Vertical Flow

The central conical magnet is aerodynamically designed to split the material flow, ensuring thorough contact with the magnetic field while preventing bridging or blockages. This “flow-thru” design is critical for maintaining high throughput rates in gravity-fed systems involving grains, flour, or pellets.

Superior Contamination Capture

Ferrous particles are attracted to the high-intensity magnetic cone and are securely held in position, often behind a protective step or flange to prevent wash-off. This ensures maximum protection for expensive downstream machinery like grinders and pelletizers by removing damaging tramp iron.

Rapid & Hygienic Maintenance

Featuring quick-release heavy-duty latches, the door housing the magnet assembly swings open effortlessly for maintenance. Operators can simply wipe the cone clean in seconds. The fully welded stainless steel construction eliminates bacteria traps, making it ideal for strict food safety environments.

Technical Specifications

Complete technical data for engineering and procurement teams

Housing Material

304 or 316 Stainless Steel (Fully Welded)

Magnet Type

Ceramic (Standard) or Rare Earth (High Intensity)

Core Design

Conical / Bullet Shape

Installation

Inline Vertical Gravity Systems

Cleaning Method

Manual Wipe (Swing-out Door)

Flow Dynamics

Internal deflectors to minimize turbulence

Applications

Flour, Grain, Feed, Plastic, Chemicals

FAQs About VIBRA® Pipe Magnets

What are pipe magnets used for?

Removing iron from vertical granular product lines. They sit inline to capture tramp metal from gravity-fed materials like grain and flour.

How does the conical shape help?

It prevents blockages and improves flow efficiency. The cone splits the product stream, forcing material against the magnet without restricting the flow rate.

How do I clean it?

Open the latch and swing the door open. The magnet is mounted on the door, allowing easy access to wipe off collected metal.

Are they food safe?

Yes, sanitary stainless steel options are available.
We use fully welded 304/316 steel to meet hygiene standards for food and beverage processing.

Can it handle high flow rates?

Yes, the design minimizes turbulence and restriction.
Internal deflectors guide the material smoothly over the magnet, maintaining line pressure and speed.

What sizes do you offer?

Custom sizes to fit various pipe diameters.
We manufacture connections to match your existing ducting, ensuring a seamless installation.

We Provide Few Options

Food standards options available

We offer food standards options to ensure safety and compliance in various industries.

Customized design

Our customization options allow you to create magnets that are uniquely yours.

Available in custom sizes, strengths, and materials

Select from a range of custom sizes, strengths, and materials to suit your specific requirements.

Various services available

Services such as Magnet Measuring and Calibration are available.

Industrial Applications

Trusted in critical processes across diverse manufacturing sectors

Food & Beverage Processing

Pharmaceutical

Recycling

Ceramics

Wood Processing

Glass Processing

Plastic

Plastic Processing
