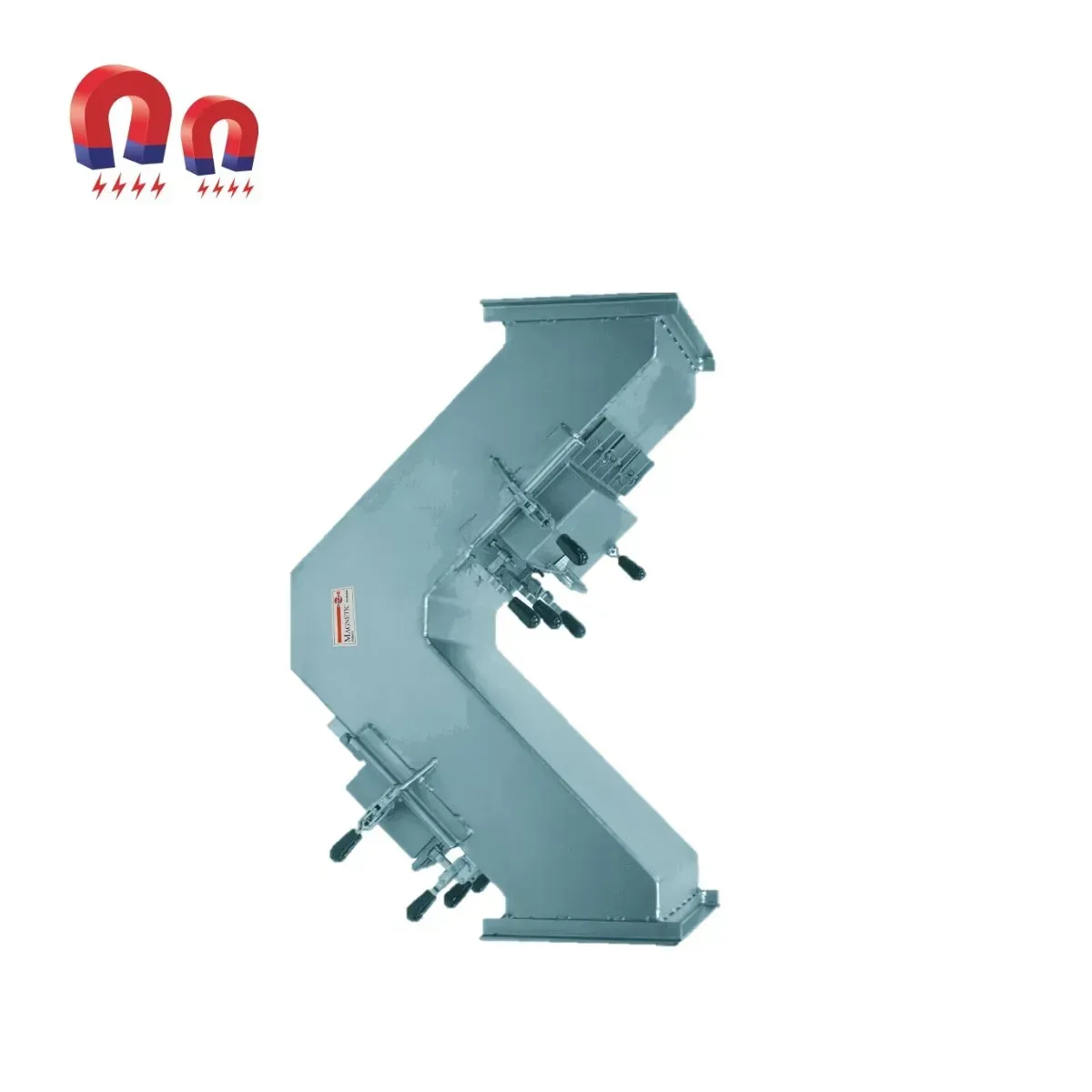

VIBRA® Hump Magnets

Heavy-duty inline magnetic separators designed for high-volume pneumatic and gravity flow lines. The unique dog-leg shape forces material to impact two powerful plate magnets for maximum iron removal.

Why Choose VIBRA® Hump Magnets?

Designed to protect your equipment and ensure product purity in demanding industrial environments

Enhanced Dual-Stage Separation

The “hump” or dog-leg housing design is engineered to force material to impact directly against two separate magnetic plates positioned at right angles. This change in direction slows the material velocity and breaks up clumps, significantly increasing the chance of capturing trapped iron compared to straight-through pipes.

Ideal for Pneumatic Systems

Constructed with a fully welded, leak-proof stainless steel housing, VIBRA® Hump Magnets are specifically designed to withstand the pressures of pneumatic conveying systems. They allow materials to pass through with minimal turbulence and zero blockage while effectively extracting fine iron from high-velocity air streams.

Rugged & Sanitary Construction

Built for demanding industries like food processing, plastics, and recycling, these units feature robust stainless steel construction (304 or 316). The housing is easy to clean and maintains strict hygiene standards, while the permanent magnets (Ceramic or Rare Earth) provide a lifetime of reliable power without electricity.

Technical Specifications

Complete technical data for engineering and procurement teams

Housing Material

304 or 316 Stainless Steel (Leak-proof)

Magnet Configuration

Two Plate Magnets (Hinged)

Magnet Material

Ceramic (Standard) or Rare Earth (High Intensity)

Flow Type

Pneumatic or Vertical Gravity Fall

Design

Offset Hump Shape

Cleaning Method

Manual Clean (Swing-out plates)

Applications

Grain, Feed, Plastics, Powder Bulk

FAQs About VIBRA® Hump Magnets

What are hump magnets used for?

Removing iron from pneumatic or gravity-fed flow lines. They are ideal for high-volume lines where material is blown or dropped through chutes, like grain or plastic pellets.

Why is it shaped like a hump?

To force material impact against the magnetic plates. The angled shape prevents material from streaming through the center, ensuring it hits the magnets for better separation.

Can it handle high pressure?

Yes, they are designed for pneumatic conveying systems.
The fully welded, leak-proof construction ensures airtight performance in positive pressure or vacuum lines.

How do I clean the magnets?

Unlatch and swing the two plate magnets open.
The magnets are mounted on hinges; simply swing them out of the housing to wipe off collected metal manually.

Will it block the flow?

No, the housing is designed to be non-clogging.
The internal volume is expanded to accommodate the flow change, minimizing turbulence and preventing material bridging.

What magnet strength is available?

We offer Ceramic and High-Intensity Rare Earth options. Choose Rare Earth for food safety to catch fine dust, or Ceramic for general tramp iron protection.

We Provide Few Options

Food standards options available

We offer food standards options to ensure safety and compliance in various industries.

Customized design

Our customization options allow you to create magnets that are uniquely yours.

Available in custom sizes, strengths, and materials

Select from a range of custom sizes, strengths, and materials to suit your specific requirements.

Various services available

Services such as Magnet Measuring and Calibration are available.
